Install a Water Pressure Sensor

Follow these instructions or watch the linked video to learn how to install the HerdHand Pressure Sensor.

Watch Video:

Instructions

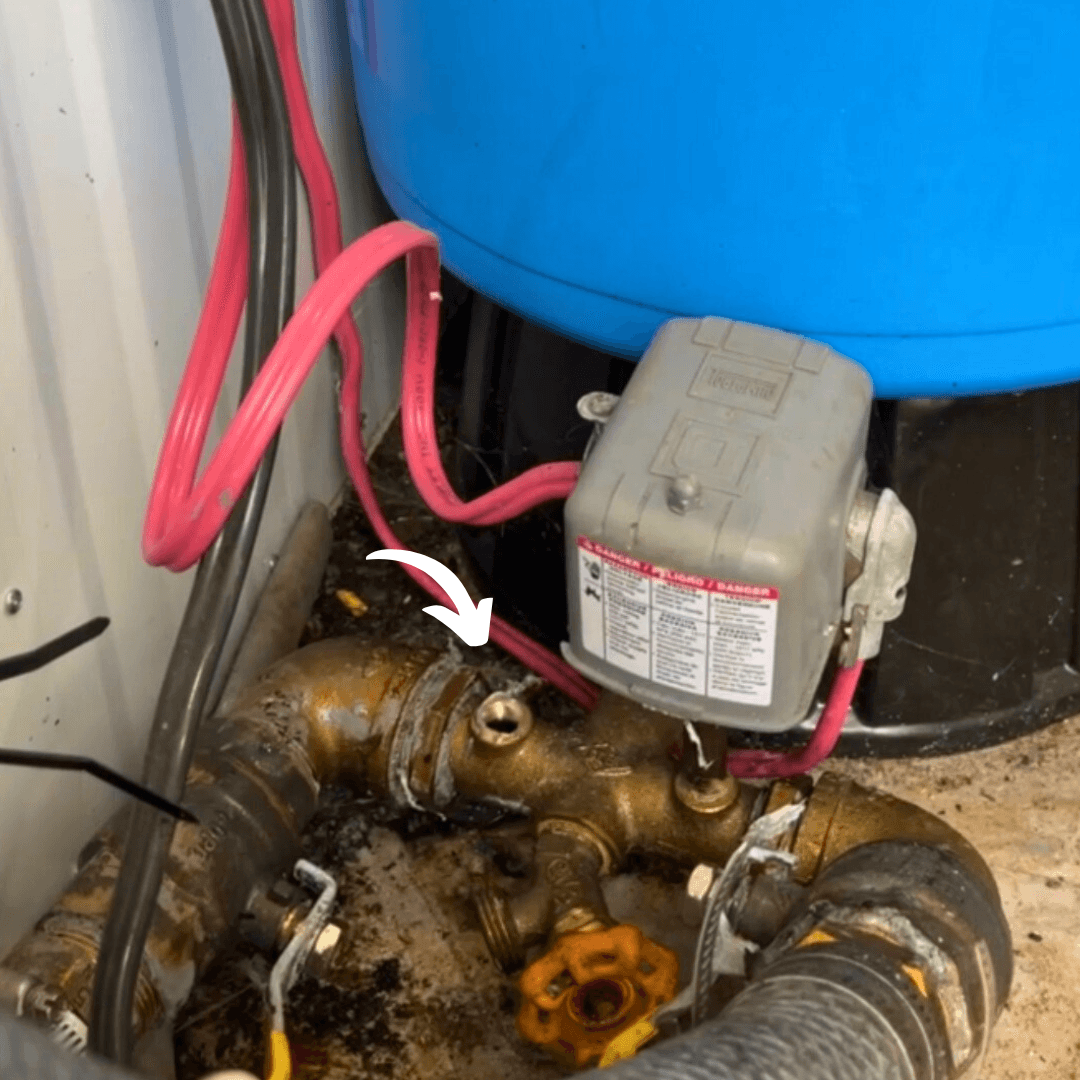

Step 1: Locate a Port

Locate a 1/4-inch port. If the pressure system only has one port, use a T-fitting to tee the HerdHand Pressure Transducer and the system’s analog gauge into the same port.

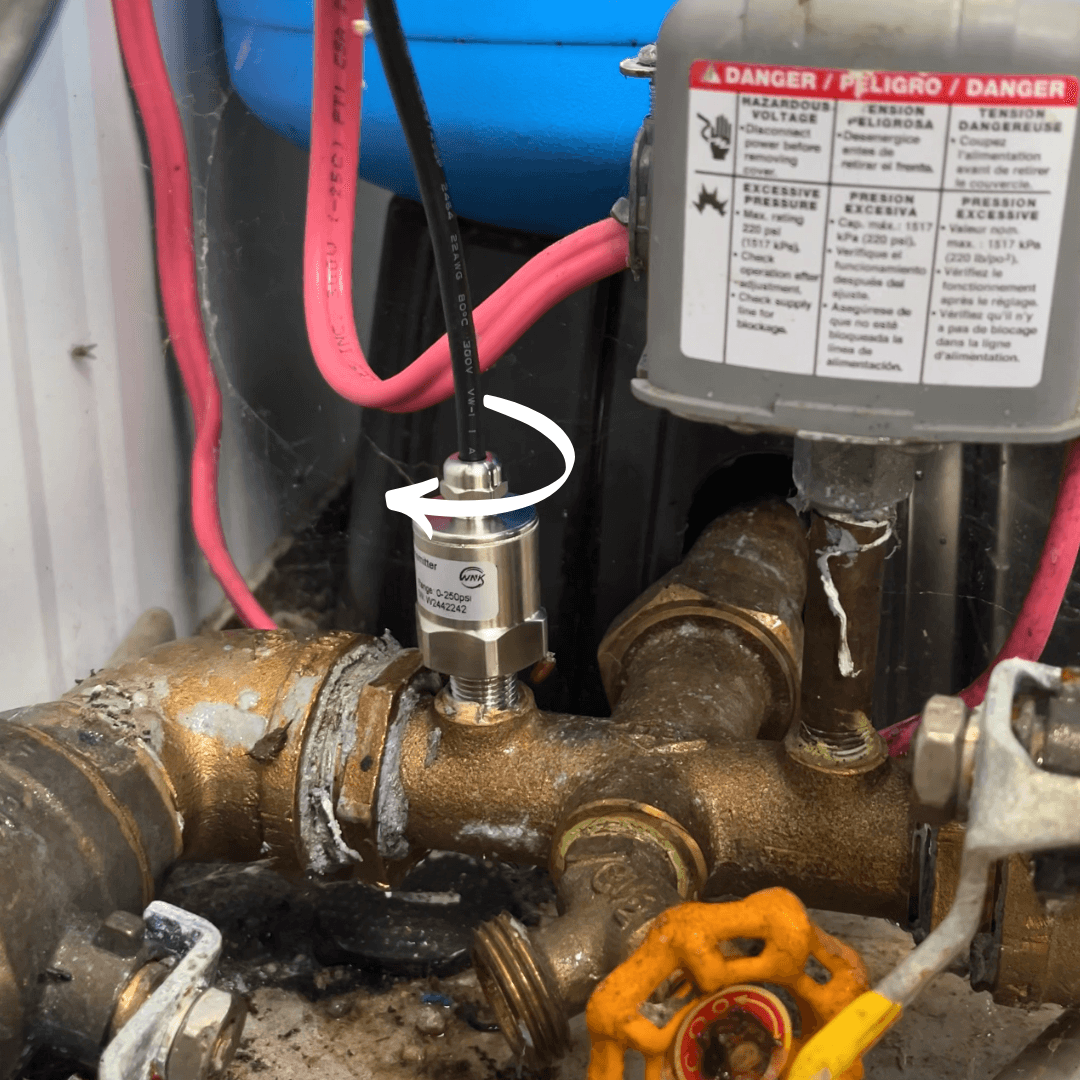

Step 2: Thread the Pressure Sensor into the Port

Begin threading the Pressure Transducer into the port by hand. Use a wrench to finish tightening the sensor.

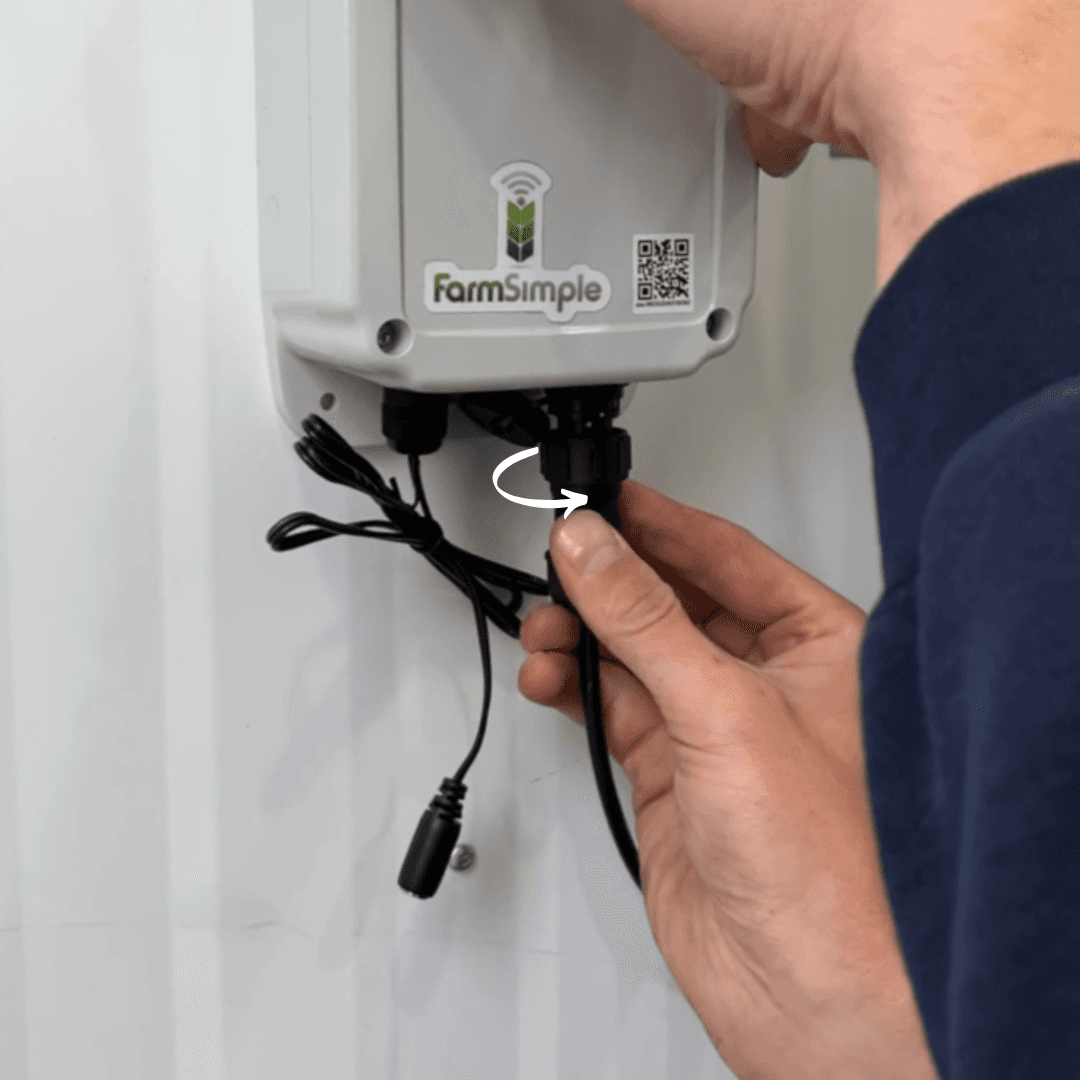

Step 3: Connect Sensor to HerdHand

Insert the Quick Connect Cable, connected to the Pressure Sensor, into the port at the bottom of the HerdHand and turn it to the right until it makes a clicking noise.


By following these steps, you’ll be able to successfully install a HerdHand Pressure Monitor in a Pump House or Well Shed. If you need further assistance, please contact our support team.
